BikeSafe Two Tier Bike Rack

£280.00 Base excl. VAT

£336.00 incl. VAT

Number of Bike Spaces (Project)*
This item is quoted per bike space. Bulk discounts may apply for 20+ Spaces.

Final price may change based on multiple factors (such as delivery address)

DESCRIPTION.

The BikeSafe Two Tier Bike Rack is a pioneering and user friendly cycle parking system, with excellent space saving bike storage, superb usability and high value; allowing you to house twice as many bikes in the same area and space as any standard bike rack. The unique aspect of the space efficient and cost effective "Two Tier Bike Rack" makes it exclusive which has resulted in a growing requirement for it; especially in areas of high population densities such as stations, shopping centres, schools, car parks and offices. This is our premium model and designed to provide an architectural feel to an active travel facility.

FEATURES.

For all types of 2 wheeled bicycles

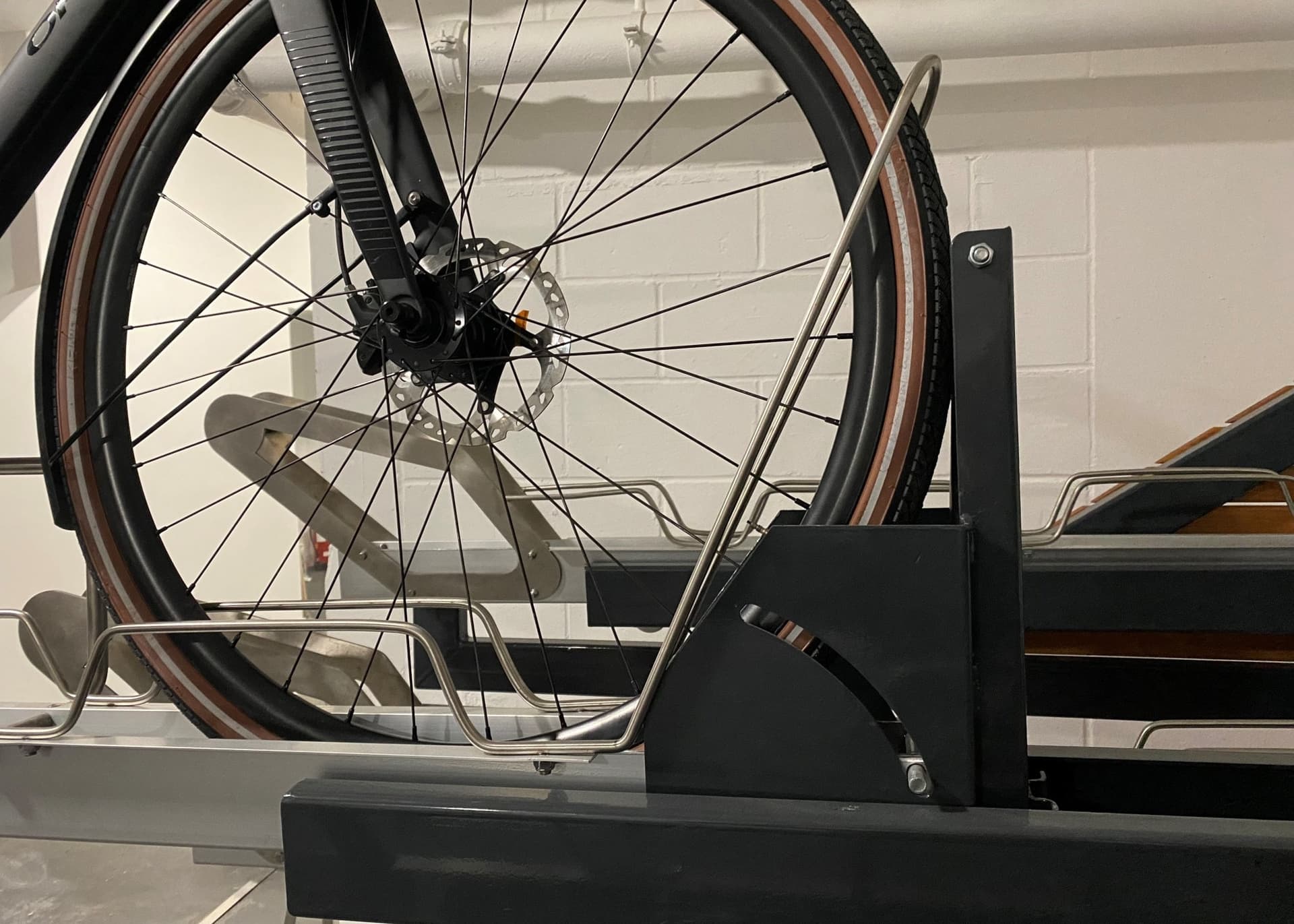

The BikeSafe Two Tier Bike Rack can accommodate all types of bicycles, such as mountain bikes and road bikes, which can be chained or D-locked to the stainless steel bar for added security. The bicycle is well supported by wheel channels and the back wheel is stabilised by a gutter to lock the bicycle firmly into place.

Simple and easy

The lower cycle rack has a sloping wheel channel, so the user does not have to bend between the levels which makes the two tier cycle rack system simple and easy to use for all ages. This rack is excellent for space saving as the cycle stands are so compact with a centre to centre distance of only 375mm (other distances available). It has an easy lift gas assist mechanism to take prevent any injuries for the user.

BENEFITS OF THE BIKESAFE TWO TIER BIKE RACK:

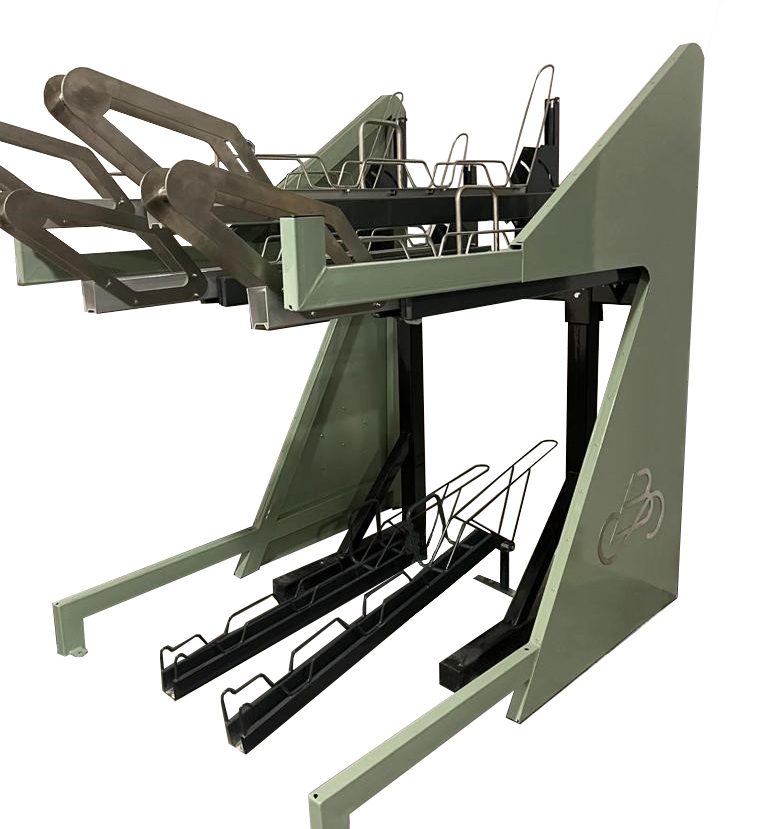

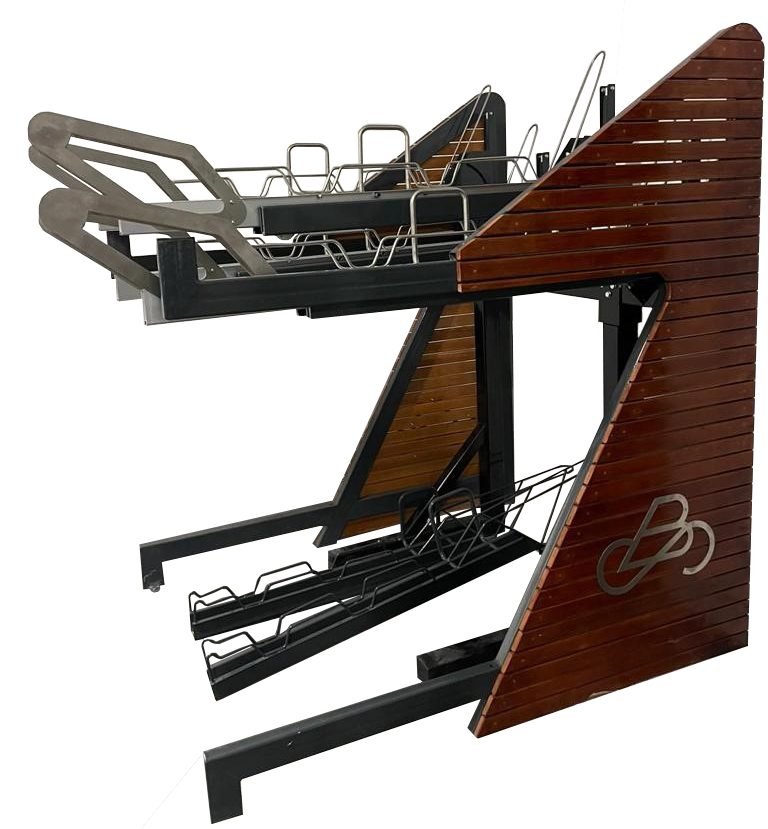

  • End panels are available steel or timber cladding
  • Top racks are constructed from aluminium to ensure a smooth, easy user experience
  • Easy to use upper tier using stainless steel bearings for long life and minimum maintenance
  • The bicycle is held stable in the wheel channels with stainless steel locking bars for additional security
  • Centre to centre 375mm as standard. Other distances available upon request.

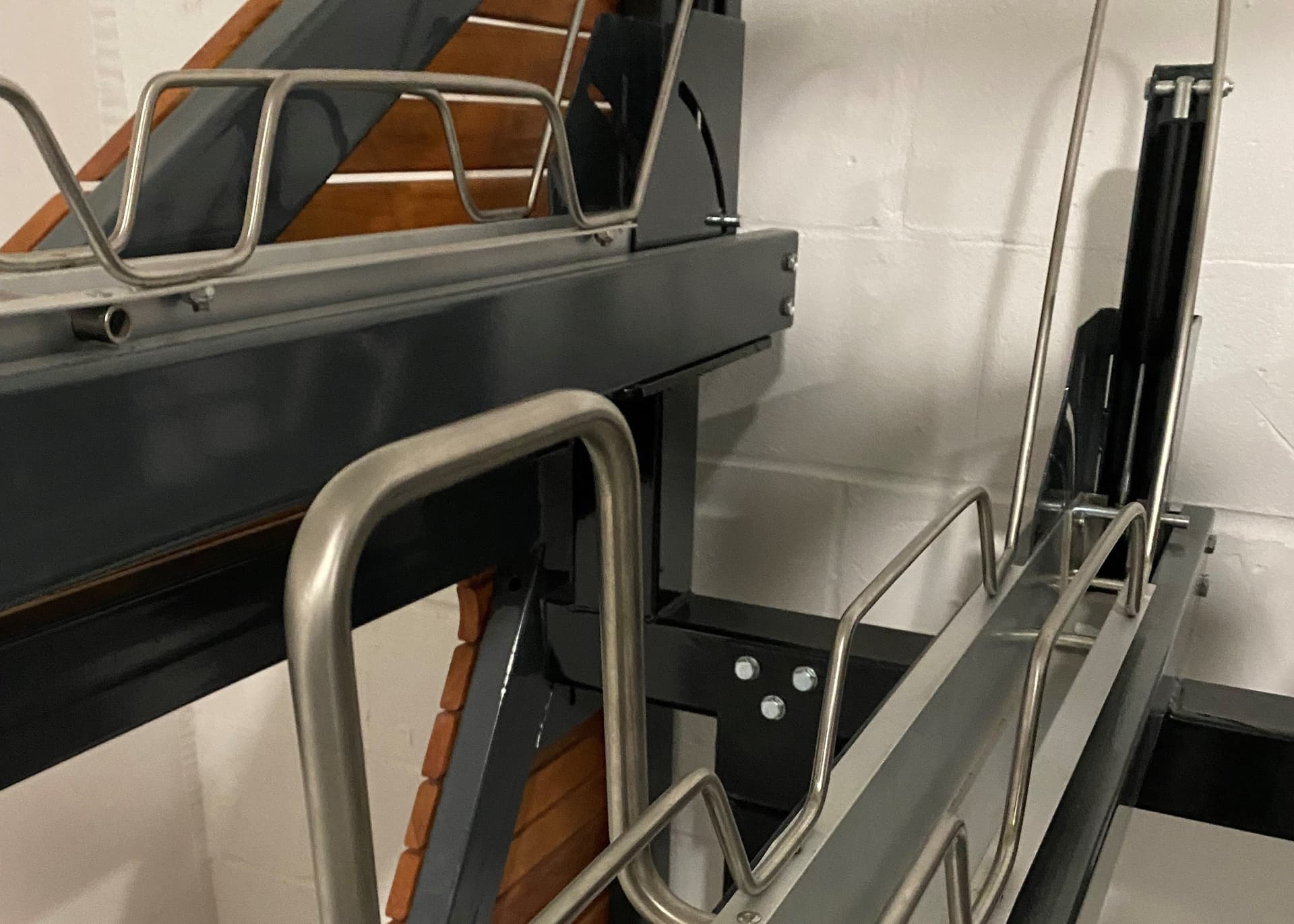

  • Handle is constructed from 304 grade stainless steel
  • Accommodates all cycle types (mountain bikes, town bikes etc)
  • Bicycle frame and wheel can be chained for security
  • Cycle is well supported when being stored
  • Lower rack has a sloping wheel channel, so the user does not have to bend between the levels
  • Can be extended indefinitely
  • Double or single sided versions available
  • Robust construction, hot dip galvanised to BS EN ISO 1461 and powder coated.
  • Optional powder coating in any of our standard RAL colours (Non moving parts)
  • Designed and manufactured by a company with over 50 years experience
  • This bike rack can help contribute towards gaining ENE8 Cycle storage credits when used in the appropriate situation, under the Code for Sustainable Homes.
  • Cycle stands are compact with a centre to centre distance of 375mm
  • Minimum height required is 2400mm x minimum depth 1950mm (plus a recommended minimum entrance space of 1500mm)
  • Easy lift gas strut fitted so lifting the bike up on the rack requires minimal force from the user, as per health and safety standards

FAQs

It's easy to work out. All you need to do, is measure the length of the area you want to fit the rack in. The length (mm) divided by 375mm = number of bikes that will fit on the bottom row. Multiply by 2 to get the total number of bike spaces and subtract 2 bikes to allow for the handle bars sticking out. For example. 4000mm length divided by 375 = 10.666. Multiplied by 2 = 21.333. Round it down to 20 bikes.
To be comfortable, we advise at least a 3500mm depth and a width of:
  • 4 bikes - 1125mm
  • 6 bikes - 1500mm
  • 8 bikes - 1875mm
  • 10 bikes - 2250mm
  • 12 bikes - 2625mm
  • 14 bikes - 3000mm
  • 16 bikes - 3375mm
  • 18 bikes - 3750mm
  • 20 bikes - 4125mm
  • Simply add 375mm for each extra 2 bikes.
Our bike racks are manufactured to order in the United Kingdom - typical delivery is 10-16 weeks.
PLEASE CALL US ON 0800 612 6113 TO DISCUSS MORE DETAILS OR TECHNICAL INFORMATION.
